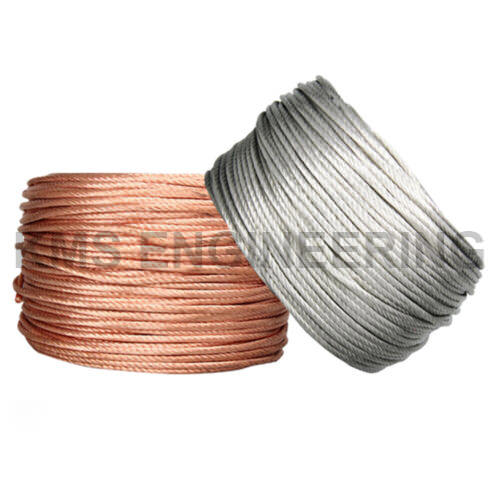

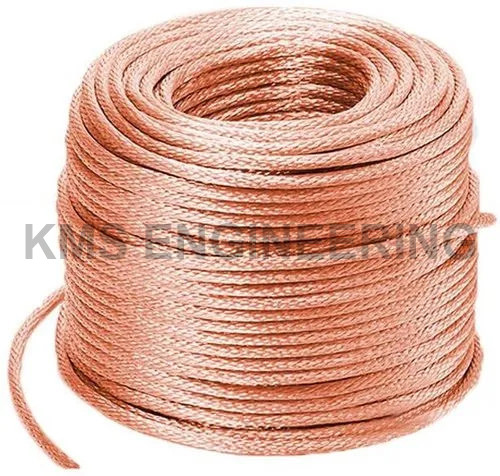

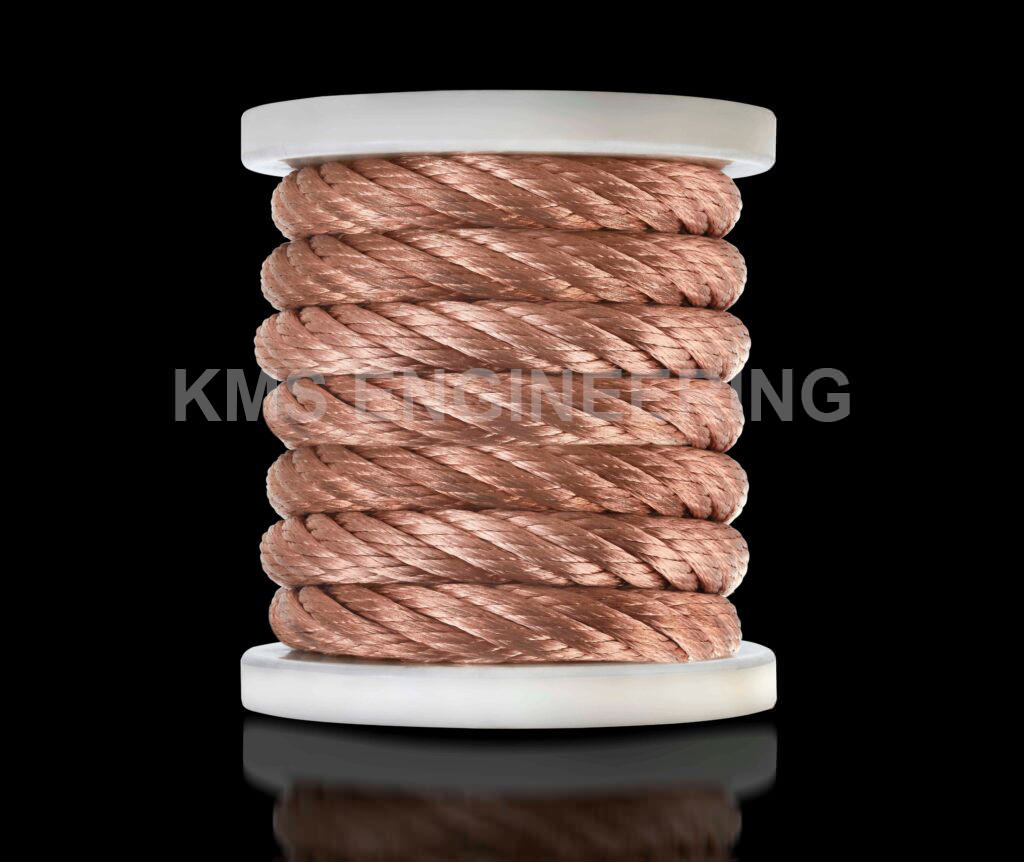

- Copper rope is a type of electrical conductor that is made up of multiple strands of copper wire twisted together to form a rope-like structure. This construction gives copper rope a high degree of flexibility and bendability, making it ideal for use in applications where the conductor needs to be able to bend and flex without breaking.
- One of the main advantages of copper rope is its high conductivity. Copper is an excellent conductor of electricity, and the multiple strands of wire used to construct the rope allow for an even higher degree of conductivity. This makes copper rope an ideal choice for use in grounding applications, where low resistance is critical for safety reasons.
- Another advantage of copper rope is its durability. The twisted strands of wire help to distribute the load and reduce stress on individual wires, which can help to prolong the life of the rope. Copper is also highly resistant to corrosion and can withstand harsh environments without losing its conductivity or structural integrity.
- Copper rope is available in a variety of sizes and configurations, ranging from small diameters for use in electronics applications to larger diameters for use in industrial and heavy-duty applications. It can also be coated with a layer of tin or nickel to improve its corrosion resistance and conductivity.
- When selecting a copper rope, it is important to consider the specific application requirements, such as the desired level of conductivity, flexibility, and durability. Factors such as the diameter and number of strands used to construct the rope, as well as the material and coating used, can all impact its performance and suitability for a given application.
- Overall, copper rope is a reliable and flexible choice for a variety of electrical applications, offering excellent conductivity, durability, and flexibility in a range of sizes and configurations.
| Material: | Cu-ETP wires, C11000, copper content ≥ 99.95% |
| Finish: | Bare, tin plating, nickel plating, silver plating |
| C/S Area: | 0.2mm2 – 300mm2 |
| Wire Diameter: | 0.05mm(47swg) to 0.3mm(30swg) |
| Packing Modes: | in rolls, on spools or wooden drums |
